Full Ceramic Tweezers
Made from Zirconia, which has a superior combination of high strength and flexibility
- Hard surface
- Good abrasion and wear resistance
- Excellent thermal properties
- High temperature stability
- Extreme corrosion resistance
Full ceramic tweezers are suitable for handling of EOS/ESD sensitive components, handling of components during thermal, chemical and soldering processes.
Partially stabilized zirconia (PSZ)
- Both hard and fracture tough
- Fine grain size: excellent surface finish and able to hold sharp edge
- Relatively low density
- No open porosity
- Good abrasion and wear resistance
- Superior flexural strength and fracture toughness
- Good thermal properties and good temperature stability
- Extreme corrosion resistance, nearly chemically inert
- Electrically insulative until 400-500°C

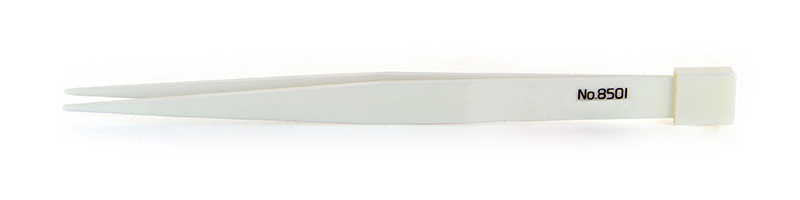

Style 00
Ceramic tweezer with straight, line serrated tips
| Catalog | Style | Material | OAL mm | A mm | B mm | Price | Unit | |
|---|---|---|---|---|---|---|---|---|
| 8501 | Style 00 serrated tips | Ceramic | 125 | 0.80 | 1.00 | 238.00 | ||
| 8501F | Style 00 | Ceramic | 125 | 0.80 | 1.00 | 240.00 |

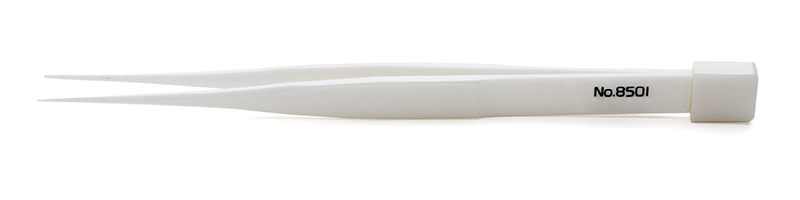

Style 3
Ceramic tweezer with squared, flat tips
| Catalog | Style | Material | OAL mm | A mm | B mm | Price | Unit | |
|---|---|---|---|---|---|---|---|---|
| 8501FGG | Style 3 | Ceramic | 125 | 0.40 | 1.00 | 240.00 |

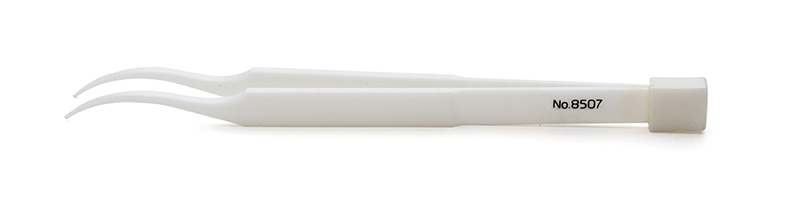

Style 7
Ceramic tweezer with curved, squared, flat tips
| Catalog | Style | Material | OAL mm | A mm | B mm | Price | Unit | |
|---|---|---|---|---|---|---|---|---|
| 8507 | Style 7 | Ceramic | 125 | 0.60 | 0.50 | 238.00 |
