High Precision Pliers

Ideal-tek Swiss Made Plier Line with Ergonomic Handles.

  • High quality ball bearing steel
        - 45 Rockwell Hardness (HRC) for pliers
  • Pyrometer controlled inductive hardening
  • Superior no-scratch/antiglare satin finish
  • 2-Component ESD-safe user-friendly Ergonomic handles with a soft comfortable gripping surface
  • Dual leaf springs made of stainless steel
  • Lap joint with screw in order to achieve a high level of strength and precision.
  • Nuts made of hardened alloy steel
  • Fine-pitched screw for perfect joint adjustment
  • Perfect symmetry

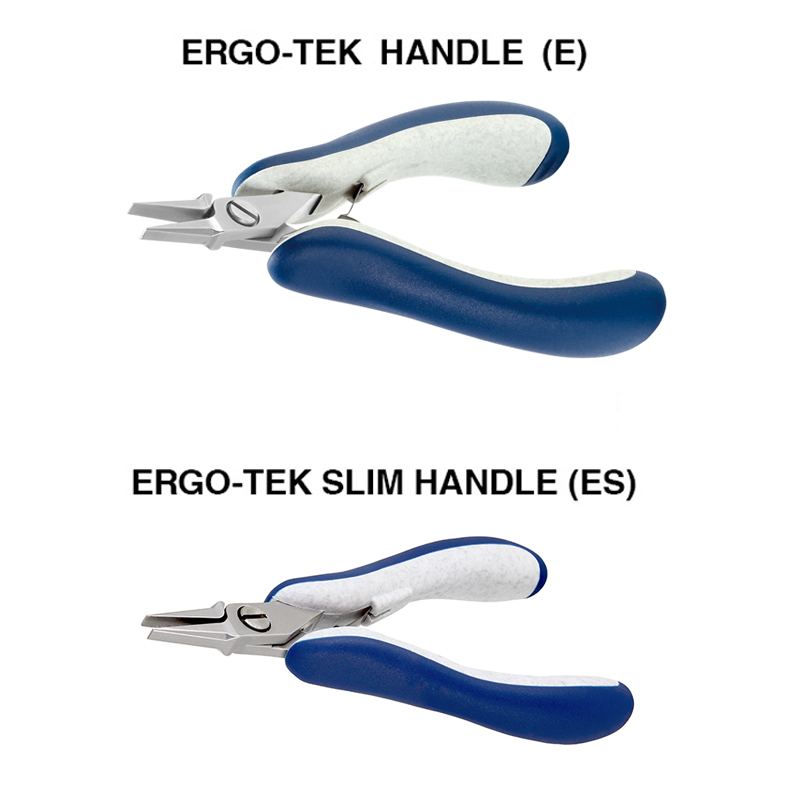

Ergo-tek Pliers - Flat Nose

Flat nose pliers feature a very fine tip, smooth or serrated jaws and inner edges. ESD safe handles.

Ergo-tek Pliers - Flat Nose
Ergo-tek Pliers - Flat Nose diagram
Catalog Head Handle OAL mm B mm C mm D mm E mm F mm Serration Price Unit
E6011 Flat Nose Regular 135 20 10 6.4 1.2 4 NO 50.00 each
E6012 Flat Nose Regular 135 20 10 6.4 1.2 4 YES 52.00 each
ES6011 Flat Nose Slim 130 20 10 6.4 1.2 4 NO 50.00 each
ES6012 Flat Nose Slim 130 20 10 6.4 1.2 4 YES 52.00 each

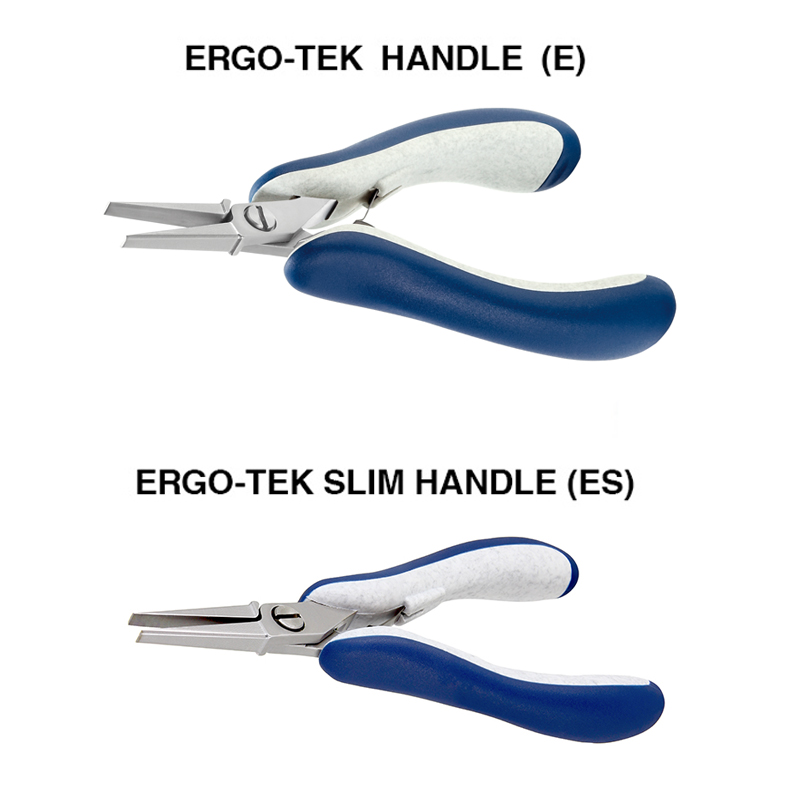

Ergo-tek Pliers - Long Flat Nose

Flat long nose pliers feature a very fine tip, smooth or serrated jaws and inner edges. ESD safe handles.

Ergo-tek Pliers - Long Flat Nose
Ergo-tek Pliers - Long Flat Nose diagram
Catalog Head Handle OAL mm B mm C mm D mm E mm F mm Serration Price Unit
E6013 Flat Nose - Long Regular 145 30 10 6.4 1.5 3.6 NO 52.00 each
E6014 Flat Nose - Long Regular 145 30 10 6.4 1.5 3.6 YES 54.00 each
ES6013 Long Flat Nose Slim 140 30 10 6.4 1.5 3.6 NO 52.00 each
ES6014 Long Flat Nose Slim 140 30 10 6.4 1.5 3.6 YES 54.00 each

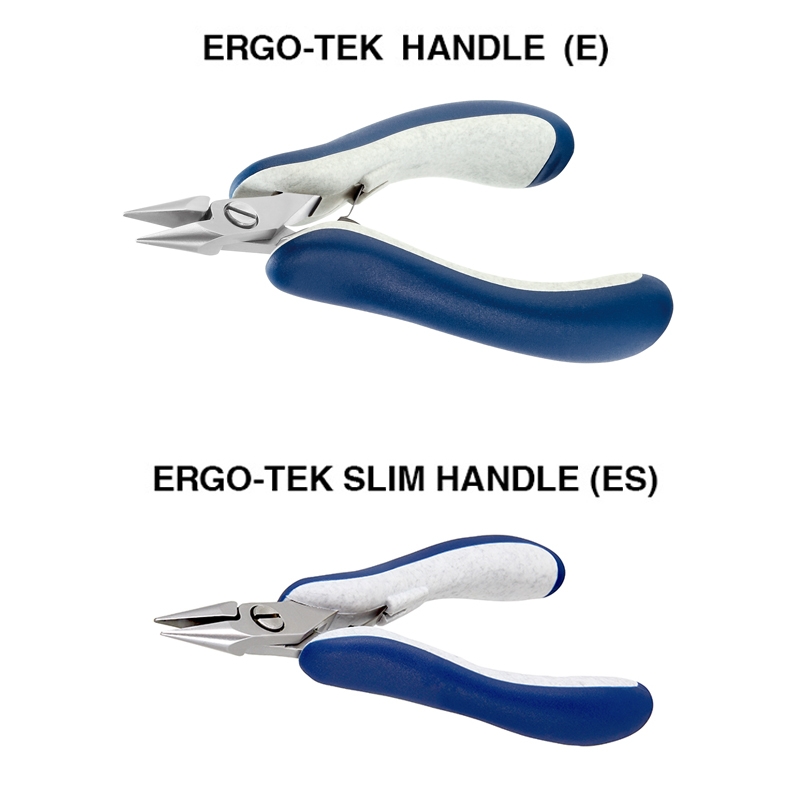

Ergo-tek Pliers - Snipe Nose

Ergo-tek Pliers with Snipe Nose, Smooth Jaws. ESD safe handles.

Ergo-tek Pliers - Snipe Nose
Ergo-tek Pliers - Snipe Nose diagram
Catalog Head Handle OAL mm B mm C mm D mm E mm F mm Serration Price Unit
E6021 Snipe Nose Regular 135 20 10 6.4 1 0.5 NO 51.00 each
E6022 Snipe Nose Regular 135 20 10 6.4 1 0.5 YES 54.00 each
ES6021 Snipe Nose Slim 130 20 10 6.4 1 0.5 NO 51.00 each
ES6022 Snipe Nose Slim 130 20 10 6.4 1 0.5 YES 54.00 each

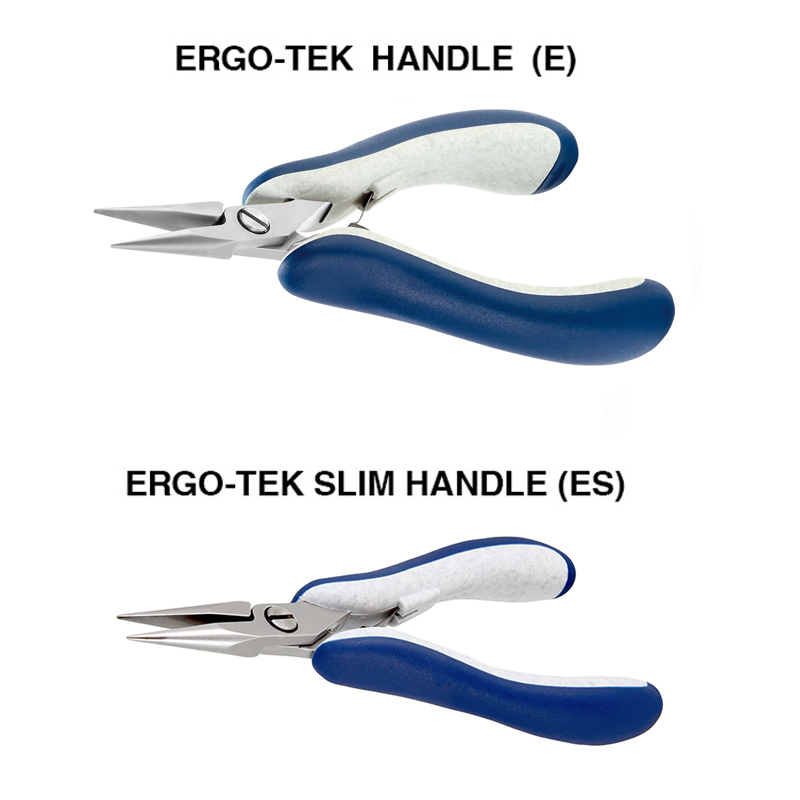

Ergo-tek Pliers - Long Snipe Nose

Ergo-tek Pliers with Long Snipe Nose, Smooth Jaws. ESD safe handles.

Ergo-tek Pliers - Long Snipe Nose
Ergo-tek Pliers - Long Snipe Nose diagram
Catalog Head Handle OAL mm B mm C mm D mm E mm F mm Serration Price Unit
E6023 Snipe Nose - Long Regular 145 30 10 6.4 1 0.5 NO 52.00 each
E6024 Snipe Nose - Long Regular 145 30 10 6.4 1 0.5 YES 55.00 each
E6023S Snipe Nose - Strong Regular 140 28 10 6.4 1.8 1.6 NO 52.00 each
E6024S Snipe Nose - Strong Regular 140 28 10 6.4 1.8 1.6 YES 55.00 each
ES6023 Long Snipe Nose Slim 140 30 10 6.4 1 0.5 NO 52.00 each
ES6024 Long Snipe Nose Slim 140 30 10 6.4 1 0.5 YES 55.00 each
ES6023S Strong Snipe Nose Slim 135 28 10 6.4 1.8 1.6 NO 52.00 each
ES6024S Strong Snipe Nose Slim 135 28 10 6.4 1.8 1.6 YES 55.00 each

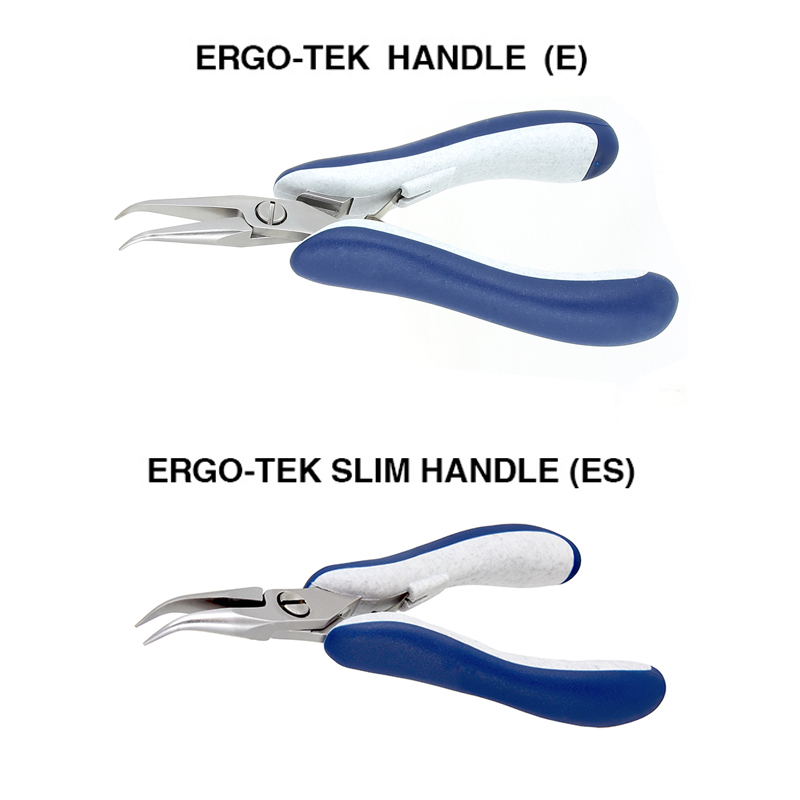

Ergo-tek Pliers - Bent Nose

Commonly used in electronic assembly and rework, as well as in fine jewellery. ESD safe handles.

Ergo-tek Pliers - Bent Nose
Ergo-tek Pliers - Bent Nose diagram
Catalog Head Handle OAL mm B mm C mm D mm E mm F mm Serration Price Unit
E6023B Bent Nose Regular 145 30 10 6.4 1 0.5 NO 55.00 each
ES6023B Bent Nose Slim 140 30 10 6.4 1 0.5 NO 55.00 each

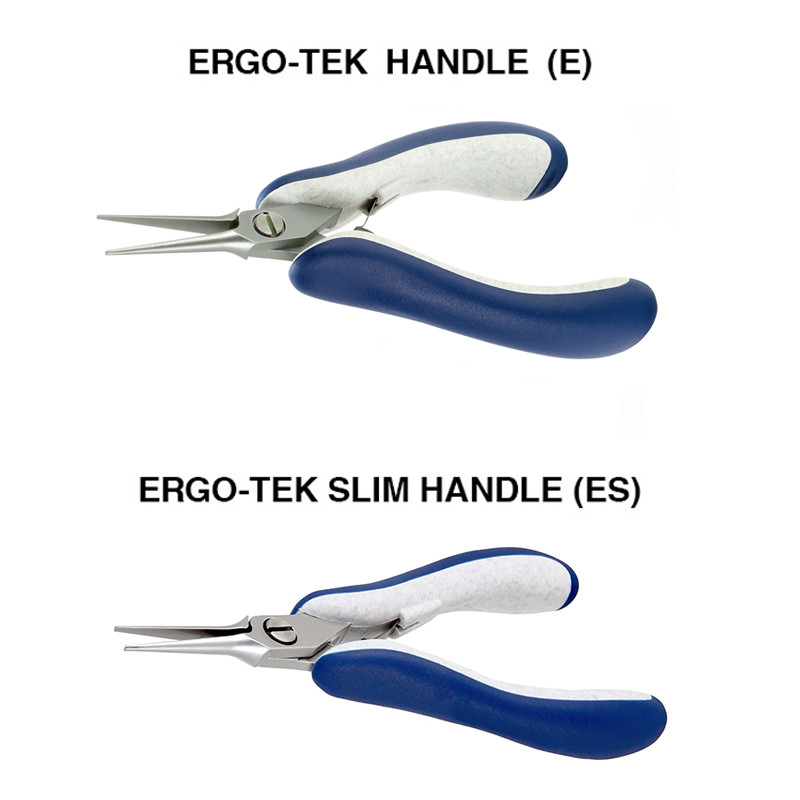

Ergo-tek Pliers - Needle Nose

Commonly used in electronic assembly and rework, as well as in fine jewellery. ESD safe handles.

Ergo-tek Pliers - Needle Nose
Ergo-tek Pliers - Needle Nose diagram
Catalog Head Handle OAL mm B mm C mm D mm E mm F mm Serration Price Unit
E6025 Needle Nose Regular 150 30 10 6.4 1.2 1.2 NO 58.00 each
ES6025 Needle Nose Slim 140 30 10 6.4 1.2 1.2 NO 58.00 each

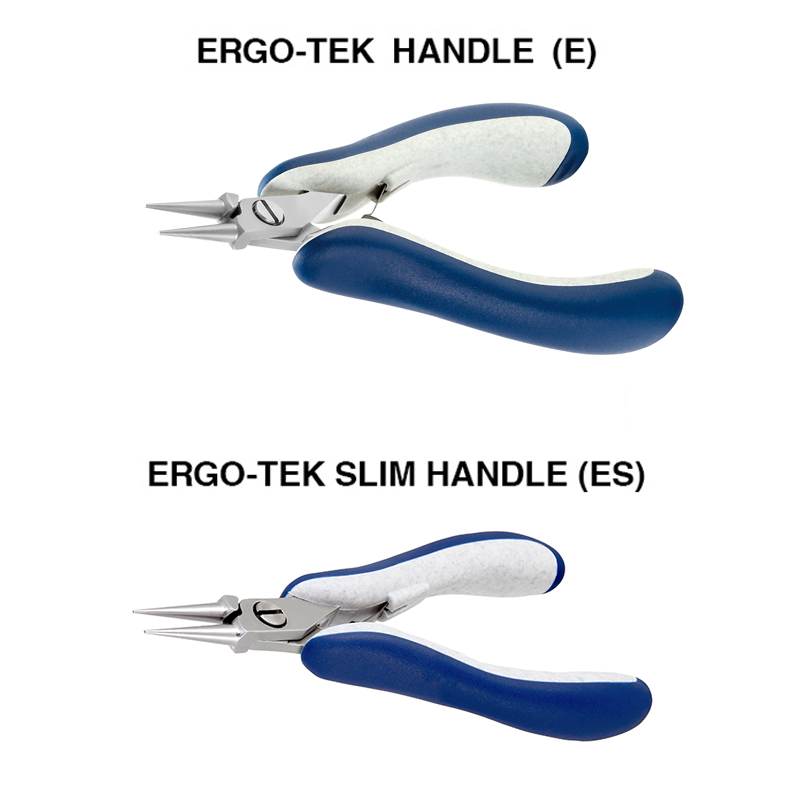

Ergo-tek Pliers - Round Nose

Round nose pliers have jaws formed by two cones. A round nose pliers is generally used both to clamp and to form loops on leads or wire. ESD safe handles.

Ergo-tek Pliers - Round Nose
Ergo-tek Pliers - Round Nose diagram
Catalog Head Handle OAL mm B mm C mm D mm E mm F mm Serration Price Unit
E6041 Round Nose Regular 140 24 10 6.4 1 0.5 NO 56.00 each
ES6041 Round Nose Slim 135 24 10 6.4 1 0.5 NO 56.00 each
