Plastic Replaceable Tip Tweezers

The largest and the most precise plastic tweezers range all over the world. 20 years of experience in high engineering plastic materials. Choose the right tweezers with the right material for your success in your application.

Replaceable kits come with 2 tips and 3 screws. The easiest and most precise replacement system available into the tweezers market.

Plastic Type CF
  • PA66/CF30 polyamide 66 reinforced with 30 wt% carbon fibre
  • heat stabilized
  • very high rigidity, excellent tensile and flexural strength, fatigue and creep resistance
  • low friction, self lubricating properties, excellent wear and abrasion resistance
  • good heat capability
  • good chemical resistance (oils, grease, fuels, non polar solvents); not resistant to strong acids, alkalis and hot water or steam
  • ESD safe material, (avoid powder attraction, sparks generation, ignition sources).
  • very low coefficient of linear thermal expansion
  • typical applications include handling of sensitive components and devices (electronic components, micro-mechanical parts, glass and ceramic substrates, capillary, etc.)
Plastic Type CP
  • PEEK polyetheretherketone reinforced with carbon fibre
  • very hard, rigid, high tensile and flexural strength, very high wear resistance
  • high heat capability (260-300°C), good dimension stability, low thermal linear expansion coefficient
  • excellent resistance to chemicals and aggressive agents, excellent resistance to thermal ageing
  • ESD-safe material
  • typical applications include handling of components in cleaning/chemical/assembly processes also at high temperature (soldering)

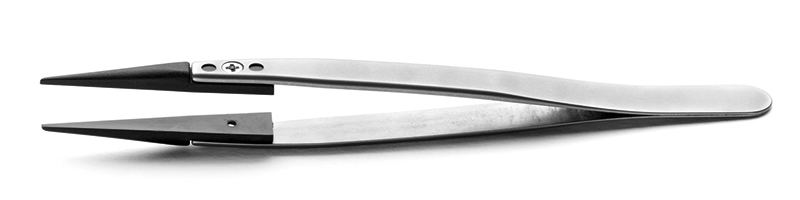

Style 00

Plastic replaceable tip tweezers with flat edges, thick tips.

Style 00
Style 00
Catalog Style Material Tip Material OAL mm A mm B mm Price Unit
00CFR.SA Style 00 Anti-Acid/Anti-Mag SS Carbon fiber 130 1.00 1.00 32.00 each
A00CF Style 00 tips - Carbon fiber 40 1.00 1.00 7.00 each

Style 2A

Plastic replaceable tip tweezers with wide flat duckbill tips.

Style 2A
Style 2A
Catalog Style Material Tip Material OAL mm A mm B mm Price Unit
2ACFR.SA Style 2A Anti-Acid/Anti-Mag SS Carbon fiber 130 0.50 2.00 32.00 each
2AXCFR.SA Style 2A Reverse Action Anti-Acid/Anti-Mag SS Carbon fiber 125 0.50 2.00 37.00 each
A2ACF Style 2A tips - Carbon fiber 40 0.50 2.00 7.00 each
2ACPR.SA Style 2A Anti-Acid/Anti-Mag SS Carbon PEEK 130 0.50 2.00 34.00 each
2AXCPR.SA Style 2A Reverse Action Anti-Acid/Anti-Mag SS Carbon PEEK 125 0.50 2.00 37.00 each
A2ACP Style 2A tips - Carbon PEEK 40 0.50 2.00 8.00 each

Style 2AB

Plastic replaceable tip tweezers with curved, wide, flat duckbill tips.

Style 2AB
Style 2AB
Catalog Style Material Tip Material OAL mm A mm B mm Price Unit
2ABCFR.SA Style 2AB Anti-Acid/Anti-Mag SS Carbon fiber 130 0.50 2.00 32.00 each
A2ABCF Style 2AB tips - Carbon fiber 40 0.50 2.00 7.00 each
2ABCPR.SA Style 2AB Anti-Acid/Anti-Mag SS Carbon PEEK 130 0.50 2.00 34.00 each
A2ABCP Style 2AB tips - Carbon PEEK 40 0.50 2.00 8.00 each

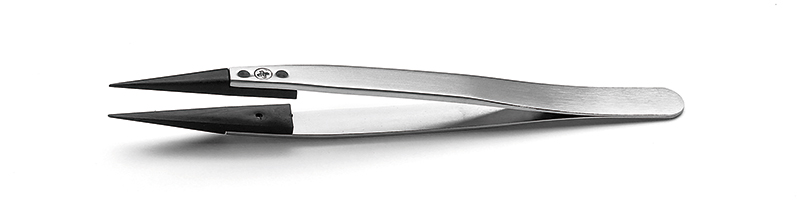

Style 3

Plastic replaceable tip tweezers with very sharp, pointed tips.

Style 3
Style 3
Catalog Style Material Tip Material OAL mm A mm B mm Price Unit
3CFR.SA Style 3 Anti-Acid/Anti-Mag SS Carbon fiber 130 0.70 0.70 32.00 each
A3CF Style 3 tips - Carbon fiber 40 0.70 0.70 7.00 each
3CPR.SA Style 3 Anti-Acid/Anti-Mag SS Carbon PEEK 130 0.70 0.70 34.00 each
A3CP Style 3 tips - Carbon PEEK 40 0.70 0.70 8.00 each

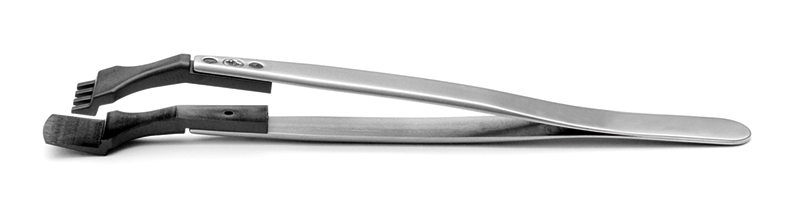

Style 4WF

Plastic replaceable tip tweezers with handling 4", flat round, stepped bottom paddle tips.

Style 4WF
Style 4WF
Catalog Style Material Tip Material OAL mm A mm B mm Price Unit
4WFCPR.SA Style 4WF Anti-Acid/Anti-Mag SS Carbon PEEK 130 1.00 12.00 36.00 each
A4WFCP Style 4WF tips - Carbon PEEK 40 1.00 12.00 9.00 each

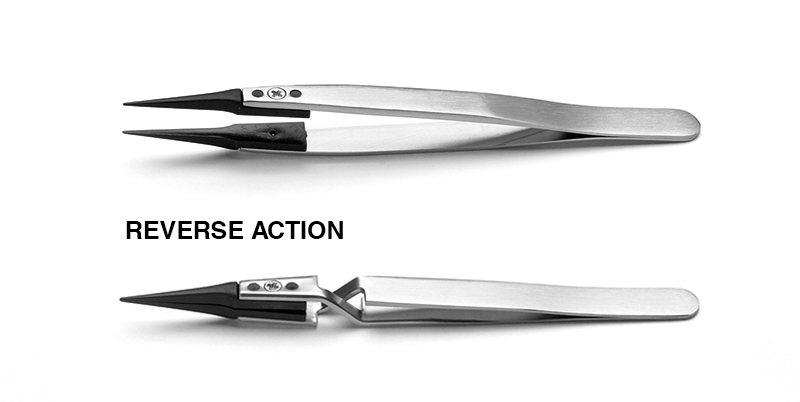

Style 5

Plastic replaceable tip tweezers with very fine tips.

Style 5
Style 5
Catalog Style Material Tip Material OAL mm A mm B mm Price Unit
5CFR.SA Style 5 Anti-Acid/Anti-Mag SS Carbon fiber 130 0.50 0.50 32.00 each
5XCFR.SA Style 5 Reverse Action Anti-Acid/Anti-Mag SS Carbon fiber 125 0.50 0.50 39.00 each
A5CF Style 5 tips - Carbon fiber 40 0.50 0.50 7.00 each
5CPR.SA Style 5 Anti-Acid/Anti-Mag SS Carbon PEEK 130 0.50 0.50 34.00 each
5XCPR.SA Style 5 Reverse Action Anti-Acid/Anti-Mag SS Carbon PEEK 125 0.50 0.50 39.00 each
A5CP Style 5 tips - Carbon PEEK 40 0.50 0.50 8.00 each

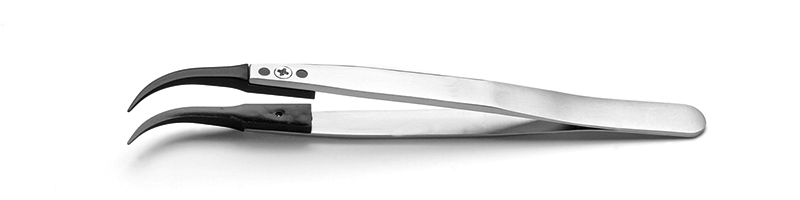

Style 7

Plastic replaceable tip tweezers with curved, very fine tips.

Style 7
Style 7
Catalog Style Material Tip Material OAL mm A mm B mm Price Unit
7CFR.SA Style 7 Anti-Acid/Anti-Mag SS Carbon fiber 130 0.50 0.50 32.00 each
A7CF Style 7 tips - Carbon fiber 40 0.50 0.50 7.00 each
7CPR.SA Style 7 Anti-Acid/Anti-Mag SS Carbon PEEK 130 0.50 0.50 34.00 each
A7CP Style 7 tips - Carbon PEEK 40 0.50 0.50 8.00 each

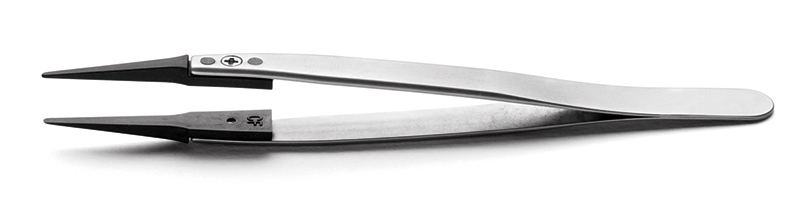

Style 242

Plastic replaceable tip tweezers with narrow, flat duckbill tips.

Style 242
Style 242
Catalog Style Material Tip Material OAL mm A mm B mm Price Unit
242CFR.SA Style 242 Anti-Acid/Anti-Mag SS Carbon fiber 130 0.50 1.50 32.00 each
A242CF Style 242 tips - Carbon fiber 40 0.50 1.50 7.00 each
242CPR.SA Style 242 Anti-Acid/Anti-Mag SS Carbon PEEK 130 0.50 1.50 34.00 each
A242CP Style 242 tips - Carbon PEEK 40 0.50 1.50 8.00 each

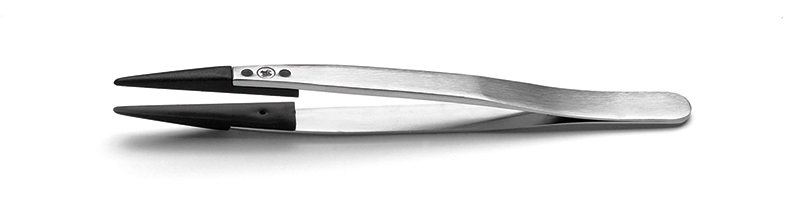

Style 249

Plastic replaceable tip tweezers with strong, thick tips.

Style 249
Style 249
Catalog Style Material Tip Material OAL mm A mm B mm Price Unit
249CFR.SA Style 249 Anti-Acid/Anti-Mag SS Carbon fiber 130 1.00 2.00 32.00 each
A249CF Style 249 tips - Carbon fiber 40 1.00 2.00 7.00 each
249CPR.SA Style 249 Anti-Acid/Anti-Mag SS Carbon PEEK 130 1.00 2.00 34.00 each
A249CP Style 249 tips - Carbon PEEK 40 1.00 2.00 8.00 each

Style 259

Plastic replaceable tip tweezers with strong, pointed tips.

Style 259
Style 259
Catalog Style Material Tip Material OAL mm A mm B mm Price Unit
259CFR.SA Style 259 Anti-Acid/Anti-Mag SS Carbon fiber 130 0.50 0.50 32.00 each
A259CF Style 259 tips - Carbon fiber 40 0.50 0.50 7.00 each
259CPR.SA Style 259 Anti-Acid/Anti-Mag SS Carbon PEEK 130 0.50 0.50 34.00 each
A259CP Style 259 tips - Carbon PEEK 40 0.50 0.50 12.00 each
